RXF77減速機加電機重量：

RXF77減速機加1.1KW電機重量44kg,RXF77減速機加1.5KW電機重量47kg,RXF77減速機加2.2KW電機重量56kg,RXF77減速機加3KW電機重量59kg,RXF77減速機加4KW電機重量70kg,RXF77減速機加5.5KW電機重量84kg,RXF77減速機加7.5KW電機重量97kg,RXF77減速機加11KW電機重量139kg。

RXF77減速機加油量：可加齒輪潤滑油

RXF77減速機M4安裝加2L，RXF77減速機M3安裝加2.4L，RXF77減速機M2安裝加1.3L，RXF77減速機M1安裝加0.9L，RXF77減速機M5安裝加1.6L，RXF77減速機M6安裝加1.6L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。齒輪減速機

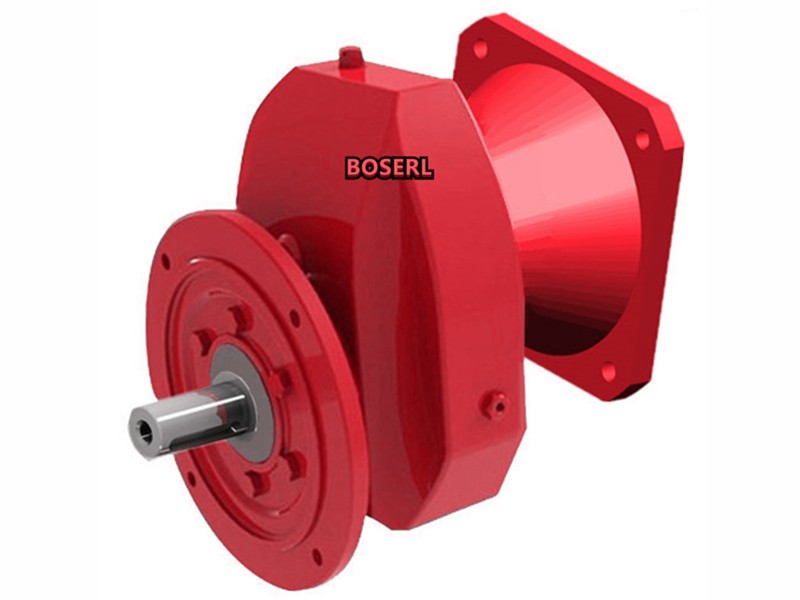

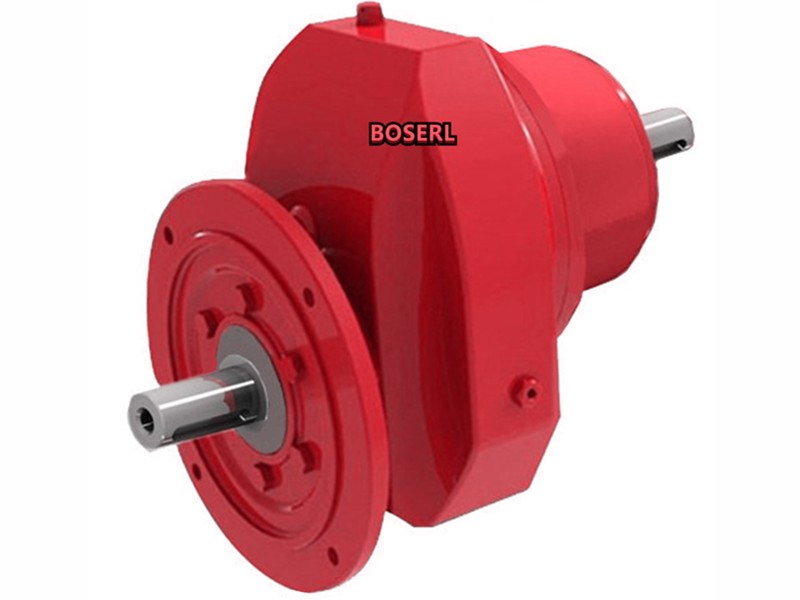

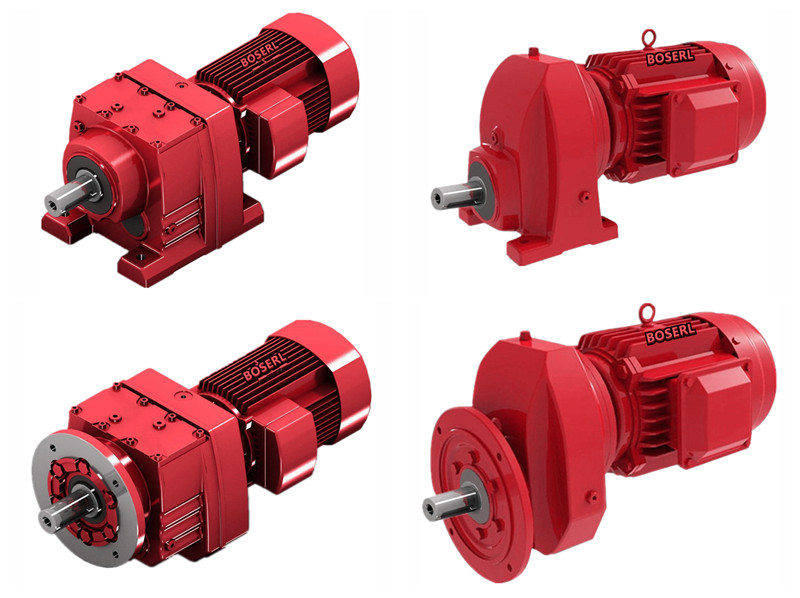

RXF77減速機實物圖：圖一為RXF77減速機不同心立式法蘭安裝，圖二為R77底腳安裝斜齒輪減速機，圖三為RF77法蘭立式安裝斜齒輪減速機，圖四為RX77減速機不同心臥式底腳安裝。

RXF77減速機型號表示方法：

RXF77減速機型號結構RXF77-B4KW-4P-減速比-安裝方式-接線盒位置。硬齒面減速機

RXF77減速機性能參數表結構說明：i代表減速比，Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入帶置。

RXF77減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。同軸減速機

RXF77減速機參數：

RXF77減速機負載扭矩53Nm,57Nm,103Nm,110Nm,123Nm,143Nm,153Nm,155Nm,173Nm,182Nm,187Nm,193Nm,200Nm,215Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

RXF77減速機電機可帶交流、伺服、剎車、變頻、防爆、交流、直流、三相、單相電機RXF77加1.1KW,RXF77加1.5KW,RXF77加2.2KW,RXF77加3KW,RXF77加4KW,RXF77加5.5KW,RXF77加7.5KW,RXF77加11KW。

RXF77減速機輸出轉速175rpm,187rpm,218rpm,249rpm,262rpm,296rpm,347rpm,378rpm,431rpm,455rpm,519rpm,576rpm,657rpm,745rpm,838rpm,986rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RXF77減速機減速比1:1.42,1:1.67,1:1.88,1:2.13,1:2.43,1:2.7,1:3.08,1:3.25,1:3.7,1:4.04,1:4.73,1:5.35,1:5.63,1:6.41,1:7.47,1:8。

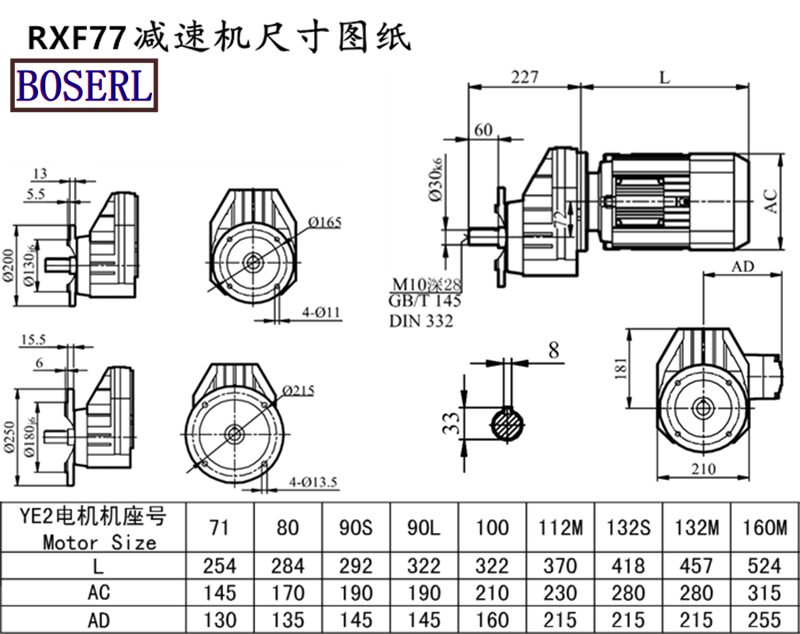

RXF77減速機外觀尺寸：輸出軸直徑Φ30+鍵3（可定做），高270*寬210*長227（帶輸出軸）

RXF77減速機型號：RXF77AQA80,RXF77AQA100,RXF77AQA115,RXF77AQA140,RXF77AQA160,RXF77AQA190,RXF77AQH80,RXF77AQH100,RXF77AQH115,RXF77AQH140,RXF77AQH160,RXF77AQH190,JRTRXF77-Y0.18KW,JRTRXF77-Y0.25KW,JRTRXF77-Y0.37KW,JRTRXF77-Y0.55KW,JRTRXF77-Y0.75KW,JRTRXF77-Y1.1KW,JRTRXF77-Y1.5KW,JRTRXF77-Y100M4,JRTRXF77-Y112M4,JRTRXF77-Y11KW,JRTRXF77-Y132M4,JRTRXF77-Y15KW,JRTRXF77-Y160M4,JRTRXF77-Y2.2KW,JRTRXF77-Y3KW,JRTRXF77-Y4KW,JRTRXF77-Y5.5KW,JRTRXF77-Y7.5KW,JRTRXF77-Y71M4,JRTRXF77-Y80M4,JRTRXF77-Y90M4,JRTRXF77-YEJ100M4,JRTRXF77-YEJ112M4,JRTRXF77-YEJ132M4,JRTRXF77-YEJ160M4,JRTRXF77-YEJ71M4,JRTRXF77-YEJ80M4,JRTRXF77-YEJ90M4,JRTRXF77-YS100M4,JRTRXF77-YS112M4,JRTRXF77-YS132M4,JRTRXF77-YS160M4,JRTRXF77-YS71M4,JRTRXF77-YS80M4,JRTRXF77-YS90M4,JRTRXF77-YVP100M4,JRTRXF77-YVP112M4,JRTRXF77-YVP132M4,JRTRXF77-YVP160M4,JRTRXF77-YVP71M4,JRTRXF77-YVP80M4,JRTRXF77-YVP90M4,JRTRXF77-YVPEJ100M4,JRTRXF77-YVPEJ112M4,JRTRXF77-YVPEJ132M4,JRTRXF77-YVPEJ160M4,JRTRXF77-YVPEJ71M4,JRTRXF77-YVPEJ80M4,JRTRXF77-YVPEJ90M4,EWRXF77-Y0.18KW,EWRXF77-Y0.25KW,EWRXF77-Y0.37KW,EWRXF77-Y0.55KW,EWRXF77-Y0.75KW,EWRXF77-Y1.1KW,EWRXF77-Y1.5KW,EWRXF77-Y100M4,EWRXF77-Y112M4,EWRXF77-Y11KW,EWRXF77-Y132M4,EWRXF77-Y15KW,EWRXF77-Y160M4,EWRXF77-Y2.2KW,EWRXF77-Y3KW,EWRXF77-Y4KW,EWRXF77-Y5.5KW,EWRXF77-Y7.5KW,EWRXF77-Y71M4,EWRXF77-Y80M4,EWRXF77-Y90M4,EWRXF77-YEJ100M4,EWRXF77-YEJ112M4,EWRXF77-YEJ132M4,EWRXF77-YEJ160M4,EWRXF77-YEJ71M4,EWRXF77-YEJ80M4,EWRXF77-YEJ90M4,EWRXF77-YS100M4,EWRXF77-YS112M4,EWRXF77-YS132M4,EWRXF77-YS160M4,EWRXF77-YS71M4,EWRXF77-YS80M4,EWRXF77-YS90M4,EWRXF77-YVP100M4,EWRXF77-YVP112M4,EWRXF77-YVP132M4,EWRXF77-YVP160M4,EWRXF77-YVP71M4,EWRXF77-YVP80M4,EWRXF77-YVP90M4,EWRXF77-YVPEJ100M4,EWRXF77-YVPEJ112M4,EWRXF77-YVPEJ132M4,EWRXF77-YVPEJ160M4,EWRXF77-YVPEJ71M4,EWRXF77-YVPEJ80M4,EWRXF77-YVPEJ90M4,SLRXF77-Y0.18KW,SLRXF77-Y0.25KW,SLRXF77-Y0.37KW,SLRXF77-Y0.55KW,SLRXF77-Y0.75KW,SLRXF77-Y1.1KW,SLRXF77-Y1.5KW,SLRXF77-Y100M4,SLRXF77-Y112M4,SLRXF77-Y11KW,SLRXF77-Y132M4,SLRXF77-Y15KW,SLRXF77-Y160M4,SLRXF77-Y2.2KW,SLRXF77-Y3KW,SLRXF77-Y4KW,SLRXF77-Y5.5KW,SLRXF77-Y7.5KW,SLRXF77-Y71M4,SLRXF77-Y80M4,SLRXF77-Y90M4,SLRXF77-YEJ100M4,SLRXF77-YEJ112M4,SLRXF77-YEJ132M4,SLRXF77-YEJ160M4,SLRXF77-YEJ71M4,SLRXF77-YEJ80M4,SLRXF77-YEJ90M4,SLRXF77-YS100M4,SLRXF77-YS112M4,SLRXF77-YS132M4,SLRXF77-YS160M4,SLRXF77-YS71M4,SLRXF77-YS80M4,SLRXF77-YS90M4,SLRXF77-YVP100M4,SLRXF77-YVP112M4,SLRXF77-YVP132M4,SLRXF77-YVP160M4,SLRXF77-YVP71M4,SLRXF77-YVP80M4,SLRXF77-YVP90M4,SLRXF77-YVPEJ100M4,SLRXF77-YVPEJ112M4,SLRXF77-YVPEJ132M4,SLRXF77-YVPEJ160M4,SLRXF77-YVPEJ71M4,SLRXF77-YVPEJ80M4,SLRXF77-YVPEJ90M4,DSZRXF77-Y0.18KW,DSZRXF77-Y0.25KW,DSZRXF77-Y0.37KW,DSZRXF77-Y0.55KW,DSZRXF77-Y0.75KW,DSZRXF77-Y1.1KW,DSZRXF77-Y1.5KW,DSZRXF77-Y100M4,DSZRXF77-Y112M4,DSZRXF77-Y11KW,DSZRXF77-Y132M4,DSZRXF77-Y15KW,DSZRXF77-Y160M4,DSZRXF77-Y2.2KW,DSZRXF77-Y3KW,DSZRXF77-Y4KW,DSZRXF77-Y5.5KW,DSZRXF77-Y7.5KW,DSZRXF77-Y71M4,DSZRXF77-Y80M4,DSZRXF77-Y90M4,DSZRXF77-YEJ100M4,DSZRXF77-YEJ112M4,DSZRXF77-YEJ132M4,DSZRXF77-YEJ160M4,DSZRXF77-YEJ71M4,DSZRXF77-YEJ80M4,DSZRXF77-YEJ90M4,DSZRXF77-YS100M4,DSZRXF77-YS112M4,DSZRXF77-YS132M4,DSZRXF77-YS160M4,DSZRXF77-YS71M4,DSZRXF77-YS80M4,DSZRXF77-YS90M4,DSZRXF77-YVP100M4,DSZRXF77-YVP112M4,DSZRXF77-YVP132M4,DSZRXF77-YVP160M4,DSZRXF77-YVP71M4,DSZRXF77-YVP80M4,DSZRXF77-YVP90M4,DSZRXF77-YVPEJ100M4,DSZRXF77-YVPEJ112M4,DSZRXF77-YVPEJ132M4,DSZRXF77-YVPEJ160M4,DSZRXF77-YVPEJ71M4,DSZRXF77-YVPEJ80M4,DSZRXF77-YVPEJ90M4,BRXF77-Y0.18KW,BRXF77-Y0.25KW,BRXF77-Y0.37KW,BRXF77-Y0.55KW,BRXF77-Y0.75KW,BRXF77-Y1.1KW,BRXF77-Y1.5KW,BRXF77-Y100M4,BRXF77-Y112M4,BRXF77-Y11KW,BRXF77-Y132M4,BRXF77-Y15KW,BRXF77-Y160M4,BRXF77-Y2.2KW,BRXF77-Y3KW,BRXF77-Y4KW,BRXF77-Y5.5KW,BRXF77-Y7.5KW,BRXF77-Y71M4,BRXF77-Y80M4,BRXF77-Y90M4,BRXF77-YEJ100M4,BRXF77-YEJ112M4,BRXF77-YEJ132M4,BRXF77-YEJ160M4,BRXF77-YEJ71M4,BRXF77-YEJ80M4,BRXF77-YEJ90M4,BRXF77-YS100M4,BRXF77-YS112M4,BRXF77-YS132M4,BRXF77-YS160M4,BRXF77-YS71M4,BRXF77-YS80M4,BRXF77-YS90M4,BRXF77-YVP100M4,BRXF77-YVP112M4,BRXF77-YVP132M4,BRXF77-YVP160M4,BRXF77-YVP71M4,BRXF77-YVP80M4,BRXF77-YVP90M4,BRXF77-YVPEJ100M4,BRXF77-YVPEJ112M4,BRXF77-YVPEJ132M4,BRXF77-YVPEJ160M4,BRXF77-YVPEJ71M4,BRXF77-YVPEJ80M4,BRXF77-YVPEJ90M4,GRXF77-Y0.18KW,GRXF77-Y0.25KW,GRXF77-Y0.37KW,GRXF77-Y0.55KW,GRXF77-Y0.75KW,GRXF77-Y1.1KW,GRXF77-Y1.5KW,GRXF77-Y100M4,GRXF77-Y112M4,GRXF77-Y11KW,GRXF77-Y132M4,GRXF77-Y15KW,GRXF77-Y160M4,GRXF77-Y2.2KW,GRXF77-Y3KW,GRXF77-Y4KW,GRXF77-Y5.5KW,GRXF77-Y7.5KW,GRXF77-Y71M4,GRXF77-Y80M4,GRXF77-Y90M4,GRXF77-YEJ100M4,GRXF77-YEJ112M4,GRXF77-YEJ132M4,GRXF77-YEJ160M4,GRXF77-YEJ71M4,GRXF77-YEJ80M4,GRXF77-YEJ90M4,GRXF77-YS100M4,GRXF77-YS112M4,GRXF77-YS132M4,GRXF77-YS160M4,GRXF77-YS71M4,GRXF77-YS80M4,GRXF77-YS90M4,GRXF77-YVP100M4,GRXF77-YVP112M4,GRXF77-YVP132M4,GRXF77-YVP160M4,GRXF77-YVP71M4,GRXF77-YVP80M4,GRXF77-YVP90M4,GRXF77-YVPEJ100M4,GRXF77-YVPEJ112M4,GRXF77-YVPEJ132M4,GRXF77-YVPEJ160M4,GRXF77-YVPEJ71M4,GRXF77-YVPEJ80M4,GRXF77-YVPEJ90M4,RCXF77-Y0.18KW,RCXF77-Y0.25KW,RCXF77-Y0.37KW,RCXF77-Y0.55KW,RCXF77-Y0.75KW,RCXF77-Y1.1KW,RCXF77-Y1.5KW,RCXF77-Y100M4,RCXF77-Y112M4,RCXF77-Y11KW,RCXF77-Y132M4,RCXF77-Y15KW,RCXF77-Y160M4,RCXF77-Y2.2KW,RCXF77-Y3KW,RCXF77-Y4KW,RCXF77-Y5.5KW,RCXF77-Y7.5KW,RCXF77-Y71M4,RCXF77-Y80M4,RCXF77-Y90M4,RCXF77-YEJ100M4,RCXF77-YEJ112M4,RCXF77-YEJ132M4,RCXF77-YEJ160M4,RCXF77-YEJ71M4,RCXF77-YEJ80M4,RCXF77-YEJ90M4,RCXF77-YS100M4,RCXF77-YS112M4,RCXF77-YS132M4,RCXF77-YS160M4,RCXF77-YS71M4,RCXF77-YS80M4,RCXF77-YS90M4,RCXF77-YVP100M4,RCXF77-YVP112M4,RCXF77-YVP132M4,RCXF77-YVP160M4,RCXF77-YVP71M4,RCXF77-YVP80M4,RCXF77-YVP90M4,RCXF77-YVPEJ100M4,RCXF77-YVPEJ112M4,RCXF77-YVPEJ132M4,RCXF77-YVPEJ160M4,RCXF77-YVPEJ71M4,RCXF77-YVPEJ80M4,RCXF77-YVPEJ90M4,MTDXF77-Y0.18KW,MTDXF77-Y0.25KW,MTDXF77-Y0.37KW,MTDXF77-Y0.55KW,MTDXF77-Y0.75KW,MTDXF77-Y1.1KW,MTDXF77-Y1.5KW,MTDXF77-Y100M4,MTDXF77-Y112M4,MTDXF77-Y11KW,MTDXF77-Y132M4,MTDXF77-Y15KW,MTDXF77-Y160M4,MTDXF77-Y2.2KW,MTDXF77-Y3KW,MTDXF77-Y4KW,MTDXF77-Y5.5KW,MTDXF77-Y7.5KW,MTDXF77-Y71M4,MTDXF77-Y80M4,MTDXF77-Y90M4,MTDXF77-YEJ100M4,MTDXF77-YEJ112M4,MTDXF77-YEJ132M4,MTDXF77-YEJ160M4,MTDXF77-YEJ71M4,MTDXF77-YEJ80M4,MTDXF77-YEJ90M4,MTDXF77-YS100M4,MTDXF77-YS112M4,MTDXF77-YS132M4,MTDXF77-YS160M4,MTDXF77-YS71M4,MTDXF77-YS80M4,MTDXF77-YS90M4,MTDXF77-YVP100M4,MTDXF77-YVP112M4,MTDXF77-YVP132M4,MTDXF77-YVP160M4,MTDXF77-YVP71M4,MTDXF77-YVP80M4,MTDXF77-YVP90M4,MTDXF77-YVPEJ100M4,MTDXF77-YVPEJ112M4,MTDXF77-YVPEJ132M4,MTDXF77-YVPEJ160M4,MTDXF77-YVPEJ71M4,MTDXF77-YVPEJ80M4,MTDXF77-YVPEJ90M4,WXRXF77-WSS0.18KW,WXRXF77-WSS0.25KW,WXRXF77-WSS0.37KW,WXRXF77-WSS0.55KW,WXRXF77-WSS0.75KW,WXRXF77-WSS1.1KW,WXRXF77-WSS1.5KW,WXRXF77-WSS100M4,WXRXF77-WSS112M4,WXRXF77-WSS11KW,WXRXF77-WSS132M4,WXRXF77-WSS15KW,WXRXF77-WSS160M4,WXRXF77-WSS2.2KW,WXRXF77-WSS3KW,WXRXF77-WSS4KW,WXRXF77-WSS5.5KW,WXRXF77-WSS7.5KW,WXRXF77-WSS71M4,WXRXF77-WSS80M4,WXRXF77-WSS90M4,WXRXF77-WSSB100M4,WXRXF77-WSSB112M4,WXRXF77-WSSB132M4,WXRXF77-WSSB160M4,WXRXF77-WSSB71M4,WXRXF77-WSSB80M4,WXRXF77-WSSB90M4,WXRXF77-WSSVP100M4,WXRXF77-WSSVP112M4,WXRXF77-WSSVP132M4,WXRXF77-WSSVP160M4,WXRXF77-WSSVP71M4,WXRXF77-WSSVP80M4,WXRXF77-WSSVP90M4,WXRXF77-WSSVPB100M4,WXRXF77-WSSVPB112M4,WXRXF77-WSSVPB132M4,WXRXF77-WSSVPB160M4,WXRXF77-WSSVPB71M4,WXRXF77-WSSVPB80M4,WXRXF77-WSSVPB90M4。

RXF77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.zdpj88.com.cn/product/list-rxfxiliejiansuji-cn.html

推薦類似型號：R77減速機
