K77減速機重量：K77減速機重量57公斤，K77減速機配電機重量分別如下

K77減速機配0.37KW電機重量67.5公斤，K77減速機配0.55KW電機重量72公斤，K77減速機配0.75KW電機重量73公斤，K77減速機配1.1KW電機重量77公斤，K77減速機配1.5KW電機重量80公斤，K77減速機配2.2KW電機重量89公斤，K77減速機配3KW電機重量92公斤，K77減速機配4KW電機重量103公斤，K77減速機配5.5KW電機重量117公斤，K77減速機配7.5KW電機重量130公斤，K77減速機配11KW電機重量172公斤。

K77減速機加油量：可加礦物油

K77減速機M1安裝加2.2升，K77減速機M2安裝加4.1升，K77減速機M3安裝加4.4升，K77減速機M4安裝加5.8升，K77減速機M5安裝加4.2升，K77減速機M6安裝加4.4升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

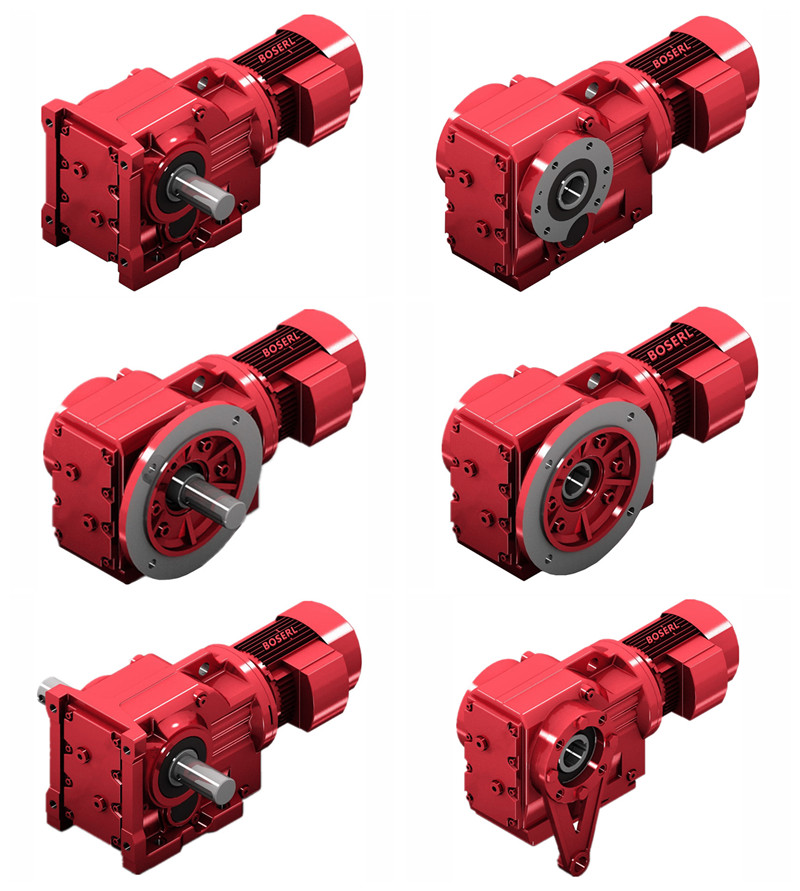

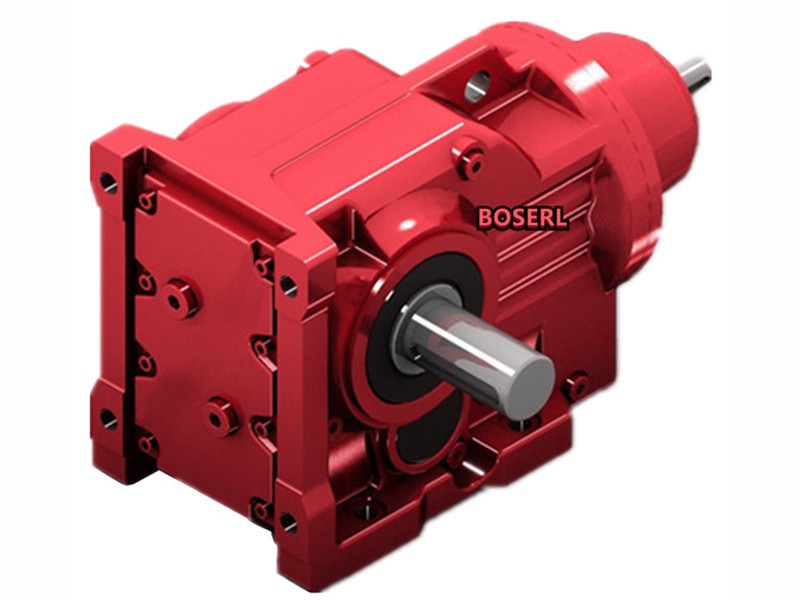

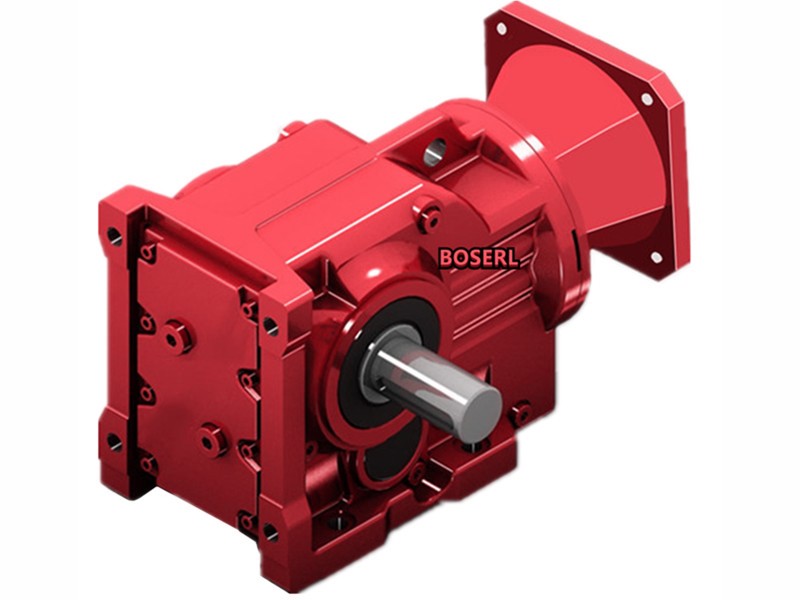

K77減速機實物圖：圖一為K77臥式安裝螺旋錐齒輪減速電機，圖二KF77立式安裝實心軸輸出螺旋錐齒輪減速電機，圖三為KA77臥式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF77立式安裝直角空心軸螺旋錐齒輪減速機。

K77減速機型號表示方法：

K77減速機型號結構K77-B11KW-4P-減速比-安裝方式-接線盒位置。

K77減速機性能參數表結構說明：RS逆止器，V強制冷卻風扇，C防雨罩，Input Configuration代表輸入配置，TF電機熱保護裝置，K77、KF77、KA77、KAF77減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

K77減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。直角減速機

K77減速機結構圖：

K77減速機參數：

K77減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K77配0.37KW，K77配0.55KW，K77配0.75KW，K77配1.1KW，K77配1.5KW，K77配2.2KW，K77配3KW，K77配4KW，K77配5.5KW，K77配7.5KW，K77配11KW。

K77減速機減速比192.18比，179.37比，154.02比，135.28比，128.52比，113.56比，97.05比，88.97比，78.07比，73.99比，64.75比，58.34比，51.18比，45.16比，40.04比，38.39比，35.2比，30.89比，29.27比，25.62比，23.08比，20.25比，17.87比，15.84比，13.52比，12.36比，10.84比，9.56比，8.48比，7.24比。

K77減速機輸出轉數7.3轉，7.8轉，9.1轉，10轉，11轉，12轉，14轉，16轉，18轉，19轉，22轉，24轉，27轉，31轉，35轉，36轉，40轉，45轉，48轉，55轉，61轉，69轉，78轉，88轉，104轉，113轉，129轉，146轉，165轉，193轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

K77減速機輸出扭矩1450N.m，1550N.m，1340N.m，1000N.m，990N.m，940N.m，890N.m，820N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

K77減速機尺寸圖紙：高288*寬306（帶輸出軸）*長314K系列減速機

K77減速機型號：K77AQA80,K77AQA100,K77AQA115,K77AQA140,K77AQA160,K77AQA190,K77AQH80,K77AQH100,K77AQH115,K77AQH140,K77AQH160,K77AQH190,JRTK77-Y0.25KW,JRTK77-Y0.37KW,JRTK77-Y0.55KW,JRTK77-Y0.75KW,JRTK77-Y1.1KW,JRTK77-Y1.5KW,JRTK77-Y100M4,JRTK77-Y112M4,JRTK77-Y11KW,JRTK77-Y132M4,JRTK77-Y160M4,JRTK77-Y2.2KW,JRTK77-Y3KW,JRTK77-Y4KW,JRTK77-Y5.5KW,JRTK77-Y7.5KW,JRTK77-Y71M4,JRTK77-Y80M4,JRTK77-Y90M4,JRTK77-YEJ100M4,JRTK77-YEJ112M4,JRTK77-YEJ132M4,JRTK77-YEJ160M4,JRTK77-YEJ71M4,JRTK77-YEJ80M4,JRTK77-YEJ90M4,JRTK77-YS100M4,JRTK77-YS112M4,JRTK77-YS132M4,JRTK77-YS160M4,JRTK77-YS71M4,JRTK77-YS80M4,JRTK77-YS90M4,JRTK77-YVP100M4,JRTK77-YVP112M4,JRTK77-YVP132M4,JRTK77-YVP160M4,JRTK77-YVP71M4,JRTK77-YVP80M4,JRTK77-YVP90M4,JRTK77-YVPEJ100M4,JRTK77-YVPEJ112M4,JRTK77-YVPEJ132M4,JRTK77-YVPEJ160M4,JRTK77-YVPEJ71M4,JRTK77-YVPEJ80M4,JRTK77-YVPEJ90M4,EWK77-Y0.25KW,EWK77-Y0.37KW,EWK77-Y0.55KW,EWK77-Y0.75KW,EWK77-Y1.1KW,EWK77-Y1.5KW,EWK77-Y100M4,EWK77-Y112M4,EWK77-Y11KW,EWK77-Y132M4,EWK77-Y160M4,EWK77-Y2.2KW,EWK77-Y3KW,EWK77-Y4KW,EWK77-Y5.5KW,EWK77-Y7.5KW,EWK77-Y71M4,EWK77-Y80M4,EWK77-Y90M4,EWK77-YEJ100M4,EWK77-YEJ112M4,EWK77-YEJ132M4,EWK77-YEJ160M4,EWK77-YEJ71M4,EWK77-YEJ80M4,EWK77-YEJ90M4,EWK77-YS100M4,EWK77-YS112M4,EWK77-YS132M4,EWK77-YS160M4,EWK77-YS71M4,EWK77-YS80M4,EWK77-YS90M4,EWK77-YVP100M4,EWK77-YVP112M4,EWK77-YVP132M4,EWK77-YVP160M4,EWK77-YVP71M4,EWK77-YVP80M4,EWK77-YVP90M4,EWK77-YVPEJ100M4,EWK77-YVPEJ112M4,EWK77-YVPEJ132M4,EWK77-YVPEJ160M4,EWK77-YVPEJ71M4,EWK77-YVPEJ80M4,EWK77-YVPEJ90M4,SLK77-Y0.25KW,SLK77-Y0.37KW,SLK77-Y0.55KW,SLK77-Y0.75KW,SLK77-Y1.1KW,SLK77-Y1.5KW,SLK77-Y100M4,SLK77-Y112M4,SLK77-Y11KW,SLK77-Y132M4,SLK77-Y160M4,SLK77-Y2.2KW,SLK77-Y3KW,SLK77-Y4KW,SLK77-Y5.5KW,SLK77-Y7.5KW,SLK77-Y71M4,SLK77-Y80M4,SLK77-Y90M4,SLK77-YEJ100M4,SLK77-YEJ112M4,SLK77-YEJ132M4,SLK77-YEJ160M4,SLK77-YEJ71M4,SLK77-YEJ80M4,SLK77-YEJ90M4,SLK77-YS100M4,SLK77-YS112M4,SLK77-YS132M4,SLK77-YS160M4,SLK77-YS71M4,SLK77-YS80M4,SLK77-YS90M4,SLK77-YVP100M4,SLK77-YVP112M4,SLK77-YVP132M4,SLK77-YVP160M4,SLK77-YVP71M4,SLK77-YVP80M4,SLK77-YVP90M4,SLK77-YVPEJ100M4,SLK77-YVPEJ112M4,SLK77-YVPEJ132M4,SLK77-YVPEJ160M4,SLK77-YVPEJ71M4,SLK77-YVPEJ80M4,SLK77-YVPEJ90M4,DSZK77-Y0.25KW,DSZK77-Y0.37KW,DSZK77-Y0.55KW,DSZK77-Y0.75KW,DSZK77-Y1.1KW,DSZK77-Y1.5KW,DSZK77-Y100M4,DSZK77-Y112M4,DSZK77-Y11KW,DSZK77-Y132M4,DSZK77-Y160M4,DSZK77-Y2.2KW,DSZK77-Y3KW,DSZK77-Y4KW,DSZK77-Y5.5KW,DSZK77-Y7.5KW,DSZK77-Y71M4,DSZK77-Y80M4,DSZK77-Y90M4,DSZK77-YEJ100M4,DSZK77-YEJ112M4,DSZK77-YEJ132M4,DSZK77-YEJ160M4,DSZK77-YEJ71M4,DSZK77-YEJ80M4,DSZK77-YEJ90M4,DSZK77-YS100M4,DSZK77-YS112M4,DSZK77-YS132M4,DSZK77-YS160M4,DSZK77-YS71M4,DSZK77-YS80M4,DSZK77-YS90M4,DSZK77-YVP100M4,DSZK77-YVP112M4,DSZK77-YVP132M4,DSZK77-YVP160M4,DSZK77-YVP71M4,DSZK77-YVP80M4,DSZK77-YVP90M4,DSZK77-YVPEJ100M4,DSZK77-YVPEJ112M4,DSZK77-YVPEJ132M4,DSZK77-YVPEJ160M4,DSZK77-YVPEJ71M4,DSZK77-YVPEJ80M4,DSZK77-YVPEJ90M4,BK77-Y0.25KW,BK77-Y0.37KW,BK77-Y0.55KW,BK77-Y0.75KW,BK77-Y1.1KW,BK77-Y1.5KW,BK77-Y100M4,BK77-Y112M4,BK77-Y11KW,BK77-Y132M4,BK77-Y160M4,BK77-Y2.2KW,BK77-Y3KW,BK77-Y4KW,BK77-Y5.5KW,BK77-Y7.5KW,BK77-Y71M4,BK77-Y80M4,BK77-Y90M4,BK77-YEJ100M4,BK77-YEJ112M4,BK77-YEJ132M4,BK77-YEJ160M4,BK77-YEJ71M4,BK77-YEJ80M4,BK77-YEJ90M4,BK77-YS100M4,BK77-YS112M4,BK77-YS132M4,BK77-YS160M4,BK77-YS71M4,BK77-YS80M4,BK77-YS90M4,BK77-YVP100M4,BK77-YVP112M4,BK77-YVP132M4,BK77-YVP160M4,BK77-YVP71M4,BK77-YVP80M4,BK77-YVP90M4,BK77-YVPEJ100M4,BK77-YVPEJ112M4,BK77-YVPEJ132M4,BK77-YVPEJ160M4,BK77-YVPEJ71M4,BK77-YVPEJ80M4,BK77-YVPEJ90M4,GK77-Y0.25KW,GK77-Y0.37KW,GK77-Y0.55KW,GK77-Y0.75KW,GK77-Y1.1KW,GK77-Y1.5KW,GK77-Y100M4,GK77-Y112M4,GK77-Y11KW,GK77-Y132M4,GK77-Y160M4,GK77-Y2.2KW,GK77-Y3KW,GK77-Y4KW,GK77-Y5.5KW,GK77-Y7.5KW,GK77-Y71M4,GK77-Y80M4,GK77-Y90M4,GK77-YEJ100M4,GK77-YEJ112M4,GK77-YEJ132M4,GK77-YEJ160M4,GK77-YEJ71M4,GK77-YEJ80M4,GK77-YEJ90M4,GK77-YS100M4,GK77-YS112M4,GK77-YS132M4,GK77-YS160M4,GK77-YS71M4,GK77-YS80M4,GK77-YS90M4,GK77-YVP100M4,GK77-YVP112M4,GK77-YVP132M4,GK77-YVP160M4,GK77-YVP71M4,GK77-YVP80M4,GK77-YVP90M4,GK77-YVPEJ100M4,GK77-YVPEJ112M4,GK77-YVPEJ132M4,GK77-YVPEJ160M4,GK77-YVPEJ71M4,GK77-YVPEJ80M4,GK77-YVPEJ90M4,KC77-Y0.25KW,KC77-Y0.37KW,KC77-Y0.55KW,KC77-Y0.75KW,KC77-Y1.1KW,KC77-Y1.5KW,KC77-Y100M4,KC77-Y112M4,KC77-Y11KW,KC77-Y132M4,KC77-Y160M4,KC77-Y2.2KW,KC77-Y3KW,KC77-Y4KW,KC77-Y5.5KW,KC77-Y7.5KW,KC77-Y71M4,KC77-Y80M4,KC77-Y90M4,KC77-YEJ100M4,KC77-YEJ112M4,KC77-YEJ132M4,KC77-YEJ160M4,KC77-YEJ71M4,KC77-YEJ80M4,KC77-YEJ90M4,KC77-YS100M4,KC77-YS112M4,KC77-YS132M4,KC77-YS160M4,KC77-YS71M4,KC77-YS80M4,KC77-YS90M4,KC77-YVP100M4,KC77-YVP112M4,KC77-YVP132M4,KC77-YVP160M4,KC77-YVP71M4,KC77-YVP80M4,KC77-YVP90M4,KC77-YVPEJ100M4,KC77-YVPEJ112M4,KC77-YVPEJ132M4,KC77-YVPEJ160M4,KC77-YVPEJ71M4,KC77-YVPEJ80M4,KC77-YVPEJ90M4,MTJ77-Y0.25KW,MTJ77-Y0.37KW,MTJ77-Y0.55KW,MTJ77-Y0.75KW,MTJ77-Y1.1KW,MTJ77-Y1.5KW,MTJ77-Y100M4,MTJ77-Y112M4,MTJ77-Y11KW,MTJ77-Y132M4,MTJ77-Y160M4,MTJ77-Y2.2KW,MTJ77-Y3KW,MTJ77-Y4KW,MTJ77-Y5.5KW,MTJ77-Y7.5KW,MTJ77-Y71M4,MTJ77-Y80M4,MTJ77-Y90M4,MTJ77-YEJ100M4,MTJ77-YEJ112M4,MTJ77-YEJ132M4,MTJ77-YEJ160M4,MTJ77-YEJ71M4,MTJ77-YEJ80M4,MTJ77-YEJ90M4,MTJ77-YS100M4,MTJ77-YS112M4,MTJ77-YS132M4,MTJ77-YS160M4,MTJ77-YS71M4,MTJ77-YS80M4,MTJ77-YS90M4,MTJ77-YVP100M4,MTJ77-YVP112M4,MTJ77-YVP132M4,MTJ77-YVP160M4,MTJ77-YVP71M4,MTJ77-YVP80M4,MTJ77-YVP90M4,MTJ77-YVPEJ100M4,MTJ77-YVPEJ112M4,MTJ77-YVPEJ132M4,MTJ77-YVPEJ160M4,MTJ77-YVPEJ71M4,MTJ77-YVPEJ80M4,MTJ77-YVPEJ90M4,WXK77-WSS0.25KW,WXK77-WSS0.37KW,WXK77-WSS0.55KW,WXK77-WSS0.75KW,WXK77-WSS1.1KW,WXK77-WSS1.5KW,WXK77-WSS100M4,WXK77-WSS112M4,WXK77-WSS11KW,WXK77-WSS132M4,WXK77-WSS160M4,WXK77-WSS2.2KW,WXK77-WSS3KW,WXK77-WSS4KW,WXK77-WSS5.5KW,WXK77-WSS7.5KW,WXK77-WSS71M4,WXK77-WSS80M4,WXK77-WSS90M4,WXK77-WSSB100M4,WXK77-WSSB112M4,WXK77-WSSB132M4,WXK77-WSSB160M4,WXK77-WSSB71M4,WXK77-WSSB80M4,WXK77-WSSB90M4,WXK77-WSSVP100M4,WXK77-WSSVP112M4,WXK77-WSSVP132M4,WXK77-WSSVP160M4,WXK77-WSSVP71M4,WXK77-WSSVP80M4,WXK77-WSSVP90M4,WXK77-WSSVPB100M4,WXK77-WSSVPB112M4,WXK77-WSSVPB132M4,WXK77-WSSVPB160M4,WXK77-WSSVPB71M4,WXK77-WSSVPB80M4,WXK77-WSSVPB90M4。
