FAF77R37減速機和電機重量：以下電機為三相異步電機，其它類型電機重量，請咨詢客服

FAF77R37減速機和0.12KW電機重211斤/FAF77R37減速機和0.18KW電機重212斤/FAF77R37減速機和0.25KW電機重220斤/FAF77R37減速機和0.37KW電機重221斤/FAF77R37減速機和0.55KW電機重230斤/FAF77R37減速機和0.75KW電機重232斤。

FAF77R37減速機質量可靠：

FAF77R37減速機適用于特殊低速的應用，具有很高的科技含量，有斜齒輪與硬齒結合體傳動，提高該機力矩與效率。該FAF77R37減速機規格齊全，轉速范圍廣，通用性好，適應各種安裝方式，性能安全可靠壽命長，實施了際標準要求。采用了系列化、模塊化的設計，傳動比覆蓋范圍廣、分精細;傳動效率高,耗能低，性能優越；齒輪經高精度磨齒機磨削加工，傳動平穩，噪音低，承載能力大，壽命長；設計精巧，體積小，安裝簡便，用途廣泛；安裝方式多樣，適合全方位的能安裝和置可實現。平行軸斜齒輪減速機

FAF77R37減速機說明：

FAF77R37減速機為組合減速機，為得到特別低的輸出轉速,可通過FAF77減速機與R37減速機相連的方式實現。當采用這種傳動方案時,可和置電機的功率依賴于減速機的極限輸出扭矩，需通過電機的額定功率和減速機的總傳動比計算得出減速機的輸出扭矩。

FAF77R37減速機輸入版型：直聯電機輸入；AM(IEC)法蘭輸入；AD軸輸入

FAF77R37減速機傳動效率：此FAF77R37減速機采用了高精度齒輪、油封、軸承，有效降低了摩擦，齒輪傳動的效率可達97%。

FAF77R37減速機使用環境：環境溫度-40至50°C (0°C以下啟動時潤滑油需加熱到0°C以上或采用防凍潤滑油)；輸入轉速不大于2800轉/分；可用于正反轉；無行業限制；在某些安裝方式時，輸入齒輪完全浸泡在潤滑油中，對于大機座號和高輸入轉速的情況，須考慮攪油損失。齒輪減速機

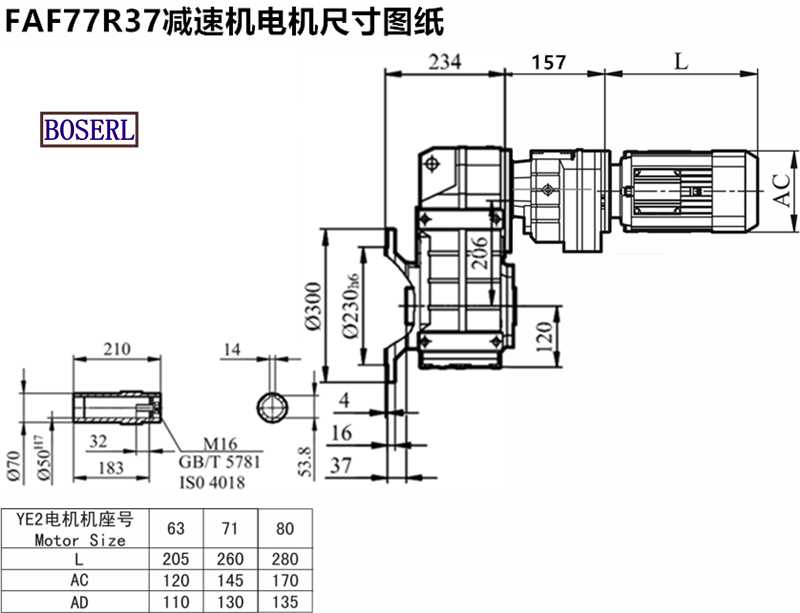

FAF77R37減速機外觀尺寸：輸出孔尺寸Φ50+鍵槽3.8（可定做），高431*寬270*長391（帶輸出法蘭）

FAF77R37減速機參數：

FAF77R37減速機可和變頻電機/剎車電機/防爆電機/伺服電機/交流電機/直流電機/三相電機/單相電機FAF77R37和0.12KW/FAF77R37和0.18KW/FAF77R37和0.25KW/FAF77R37和0.37KW/FAF77R37和0.55KW/FAF77R37和0.75KW。

FAF77R37減速機減速比280比/323比/367比/413比/480比/538比/615比/710比/810比/910比/1053比/1200比/1354比/1544比/1728比/2029比/2284比/2613比。

FAF77R37減速機輸出轉數0.53轉/0.6轉/0.68轉/0.8轉/0.86轉/0.89轉/0.98轉/1轉/1.1轉/1.2轉/1.3轉/1.4轉/1.5轉/1.6轉/1.7轉/1.8轉/1.9轉/2.1轉/2.2轉/2.4轉/2.6轉/2.7轉/2.9轉/3.2轉/3.4轉/3.8轉/3.9轉/4.3轉/4.4轉/5.1轉。

FAF77R37減速電機輸出扭矩460N.m/525N.m/630N.m/660N.m/690N.m/740N.m/750N.m/775N.m/780N.m/840N.m/870N.m/880N.m/940N.m/950N.m/1000N.m/1030N.m/1090N.m/1100N.m/1120N.m/1130N.m/1180N.m/1210N.m/1240N.m/1270N.m/1280N.m/1290N.m/1380N.m/1420N.m/1480N.m/1490N.m/1550N.m/1570N.m/1620N.m/1660N.m/1680N.m/1740N.m/1770N.m/1820N.m/1840N.m。

FAF77R37減速機材質：

FAF77R37減速機箱體：HT250高強度鑄鐵，射型內腔，有效減少零件磨損；齒輪：20CrMo優質合金鋼，碳氮共滲處理(精磨后保持齒面硬度HRC60) ；平鍵：45鋼，表面硬度HRC50。

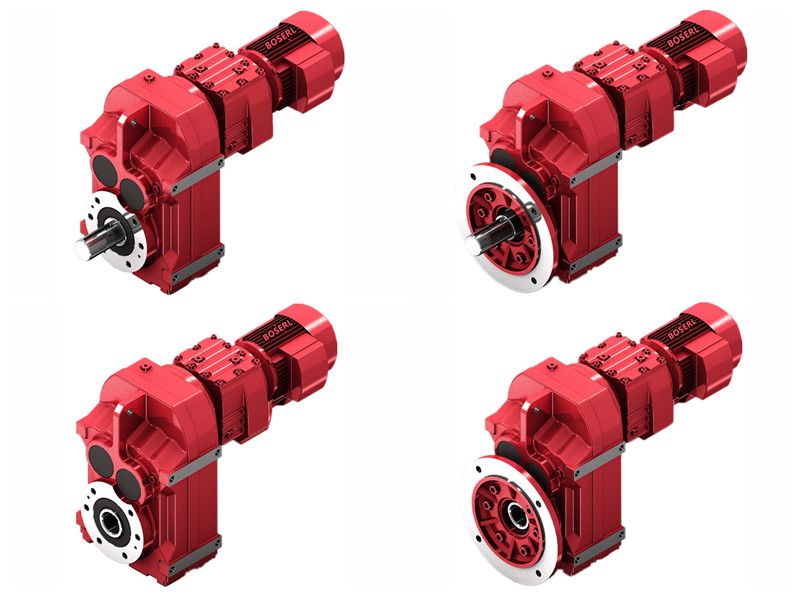

FAF77R37減速機各種輸出實物圖：

FAF77R37減速機型號：FAF77R37DM63L4,FAF77R37DM63M4,FAF77R37DM63MS4,FAF77R37DM63S4,FAF77R37DM71D4,FAF77R37DM71M4,FAF77R37DM71MS4,FAF77R37DM71S4,FAF77R37DM80K4,FAF77R37DM80M4,FAF77R37DM80MK4,FAF77R37DM80N4,FAF77R37DM80S4,FAF77R37DR63L4,FAF77R37DR63M4,FAF77R37DR63MS4,FAF77R37DR63S4,FAF77R37DR71D4,FAF77R37DR71M4,FAF77R37DR71MS4,FAF77R37DR71S4,FAF77R37DR80K4,FAF77R37DR80M4,FAF77R37DR80MK4,FAF77R37DR80N4,FAF77R37DR80S4,FAF77R37DRE63L4,FAF77R37DRE63M4,FAF77R37DRE63MS4,FAF77R37DRE63S4,FAF77R37DRE71D4,FAF77R37DRE71M4,FAF77R37DRE71MS4,FAF77R37DRE71S4,FAF77R37DRE80K4,FAF77R37DRE80M4,FAF77R37DRE80MK4,FAF77R37DRE80N4,FAF77R37DRE80S4,FAF77R37DRN63L4,FAF77R37DRN63M4,FAF77R37DRN63MS4,FAF77R37DRN63S4,FAF77R37DRN71D4,FAF77R37DRN71M4,FAF77R37DRN71MS4,FAF77R37DRN71S4,FAF77R37DRN80K4,FAF77R37DRN80M4,FAF77R37DRN80MK4,FAF77R37DRN80N4,FAF77R37DRN80S4,FAF77R37DRS63L4,FAF77R37DRS63M4,FAF77R37DRS63MS4,FAF77R37DRS63S4,FAF77R37DRS71D4,FAF77R37DRS71M4,FAF77R37DRS71MS4,FAF77R37DRS71S4,FAF77R37DRS80K4,FAF77R37DRS80M4,FAF77R37DRS80MK4,FAF77R37DRS80N4,FAF77R37DRS80S4,FAF77R37DT63L4,FAF77R37DT63M4,FAF77R37DT63MS4,FAF77R37DT63S4,FAF77R37DT71D4,FAF77R37DT71M4,FAF77R37DT71MS4,FAF77R37DT71S4,FAF77R37DT80K4,FAF77R37DT80M4,FAF77R37DT80MK4,FAF77R37DT80N4,FAF77R37DT80S4,FAF77R37DV63L4,FAF77R37DV63M4,FAF77R37DV63MS4,FAF77R37DV63S4,FAF77R37DV71D4,FAF77R37DV71M4,FAF77R37DV71MS4,FAF77R37DV71S4,FAF77R37DV80K4,FAF77R37DV80M4,FAF77R37DV80MK4,FAF77R37DV80N4,FAF77R37DV80S4,FAF77R37DVE63L4,FAF77R37DVE63M4,FAF77R37DVE63MS4,FAF77R37DVE63S4,FAF77R37DVE71D4,FAF77R37DVE71M4,FAF77R37DVE71MS4,FAF77R37DVE71S4,FAF77R37DVE80K4,FAF77R37DVE80M4,FAF77R37DVE80MK4,FAF77R37DVE80N4,FAF77R37DVE80S4,FAF77R37Y63M4,FAF77R37Y71M4,FAF77R37Y80M4,FAF77RF37Y63M4,FAF77RF37Y71M4,FAF77RF37Y80M4變頻電機減速機

FAF77R37減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.zdpj88.com.cn/product/list-fafxiliejiansuji-cn.html

推薦型號：F77減速機
